Редукционная установка давления пара - на рамеVA9030

Compact, functional unit, installed on a frame with ready connection points for easy installation in the technology.

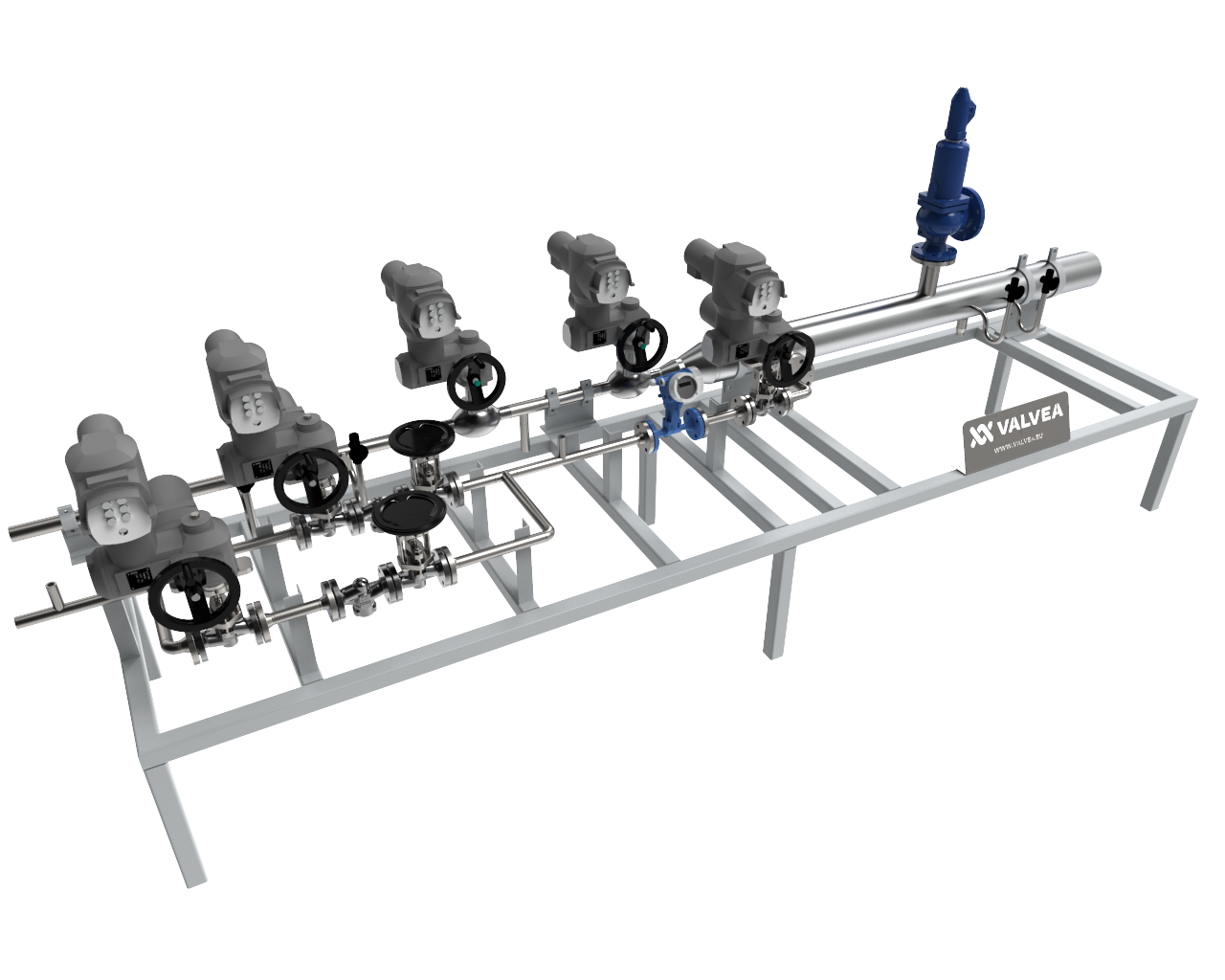

Pressure reduction and cooling station – on the frame, so-called modular skids means compact unit with weight of up to  20 tons and / or  5-11 meters in length. The whole skid´s construction usually includes control valves, safety valves, on/off valves, pipes, tanks, measuring and control parts, electrical equipment and other equipment, all installed on a frame with ready connection points for easy installation in the technology.

INLET PIPE SIZE
  • DN40 to DN300
OUTLET PIPE SIZE
  • DN50 to DN600
PRESSURE RATING
  • PN16, PN40, PN63, PN100, PN160, PN250, PN400
DESIGN STANDARD
  • PED, EN13480
END CONNECTION
  • flanged, Butt Weld
VALVE BODY MATERIAL
  • flanged, Butt Weld
PIPE MATERIAL
  • flanged, Butt Weld
INSTRUMENT OPTIONS
  • Pressure transducer, temperature transducer, pressure gauge, thermometer, flow meter, PID regulator, control panel, switchboard, frame
