Редукционная установка давления параVA9020

Compact, functional unit, installed on a frame with ready connection points for easy installation in the technology.


Compact, functional unit with ready connection points for easy installation in the technology.

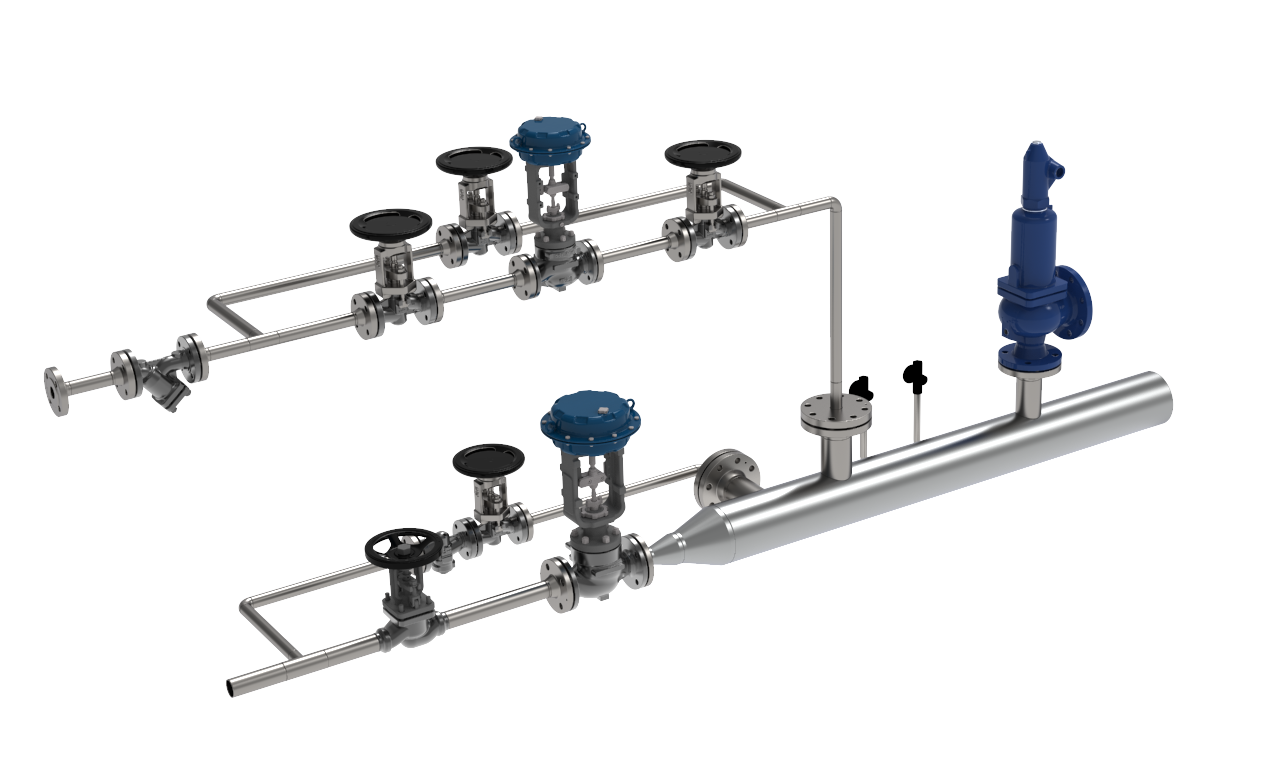

Pressure reduction and cooling station means compact unit with weight of up to  20 tons and / or  5-11 meters in length. The whole skid´s construction usually includes control valves, safety valves, on/off valves, pipes, tanks, measuring and control parts, electrical equipment and other equipment, with ready connection points for easy installation in the technology.

INLET PIPE SIZE
  • DN40 to DN300
OUTLET PIPE SIZE
  • DN50 to DN600
PRESSURE RATING
  • PN16, PN40, PN63, PN100, PN160, PN250, PN400
DESIGN STANDARD
  • PED, EN13480
END CONNECTION
  • flanged, Butt Weld
VALVE BODY MATERIAL
  • flanged, Butt Weld
PIPE MATERIAL
  • flanged, Butt Weld
INSTRUMENT OPTIONS
  • Pressure transducer, temperature transducer, pressure gauge, thermometer, flow meter, PID regulator, control panel, switchboard
