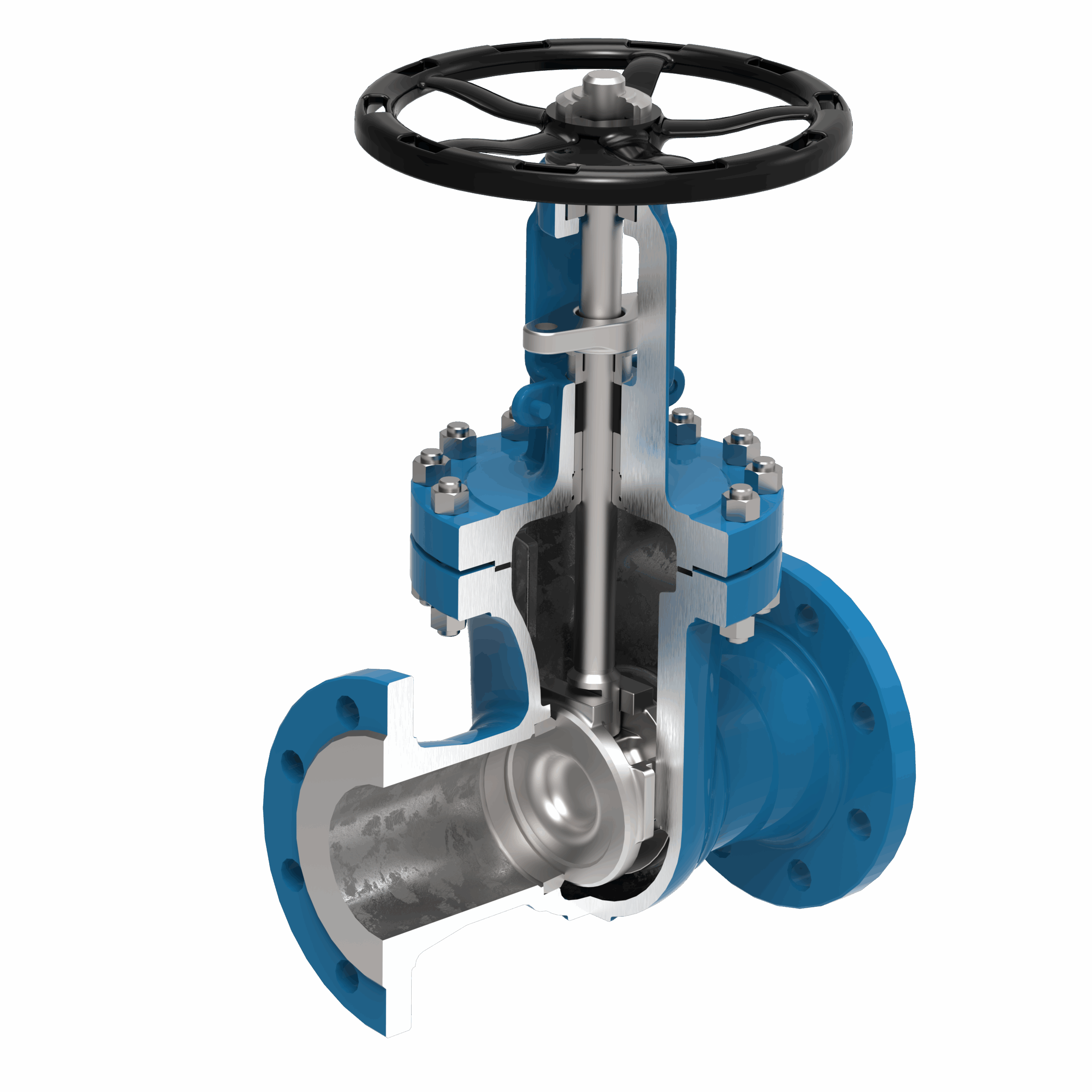

Gate valvesVA1033, VA1038, VA1042

Nominal diameters

• DN 50 (2“) – DN 1000 (40“)

Nominal pressure values

• PN 16 – PN 400
• Class 150 – Class 2500

Design

• yoke gate valve
• with pressure-seal bonnet
• special design

Operating temperature range

• -60°C to +650°C

Flow characteristics

• on/off

Leakage class (IEC 60534-4)

• class A

Body material

• ductile iron
• carbon steel
• alloy steel
• stainless steel
• others

Material of inner parts

• ductile iron
• carbon steel
• alloy steel
• stainless steel
• others

Connection

• flanged
• welded

Type of actuator

• manual operated
• with gearbox
• electric
